Basic Info.
| Model NO. | API610 | ||
| Max.Head | ~1200m | -20~80 Degrees | |
| Max.Capacity | ~800m³/H | ~2.5MPa | |
| 1450~2950r/Min | |||
| Single-Stage Pump | 18000m3/H | ||
| 150m | |||
| 1000.00cm * 2000.00cm * 1000.00cm | |||
| 8413709990 | |||
| 5000 |
| 200HLD-82X10 200: nominal diameter of the outlet 82: Single stage head (m) 10: Series of impeller |
Such as ethylene, liquid ammonia, liquefied gas, condensate, hydrohydrocarbons, oil products, etc. It can also transport liquid oxygen, liquid nitrogen, liquid argon and other cryogenic liquids in the air separation unit. |
Flow rate: ~18000m³/h Head: ~150200m Speed. 1450~2950r/min Design pressure: ~ 2.5MPa Operating temperature: -20ºC~80ºC |

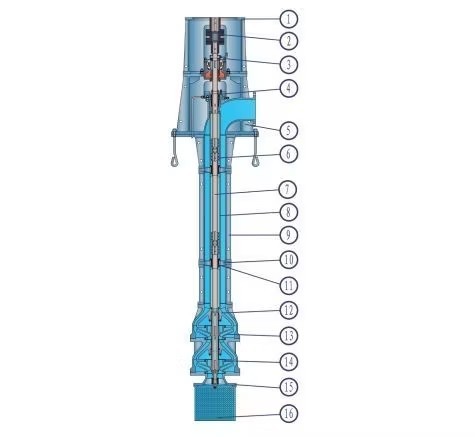

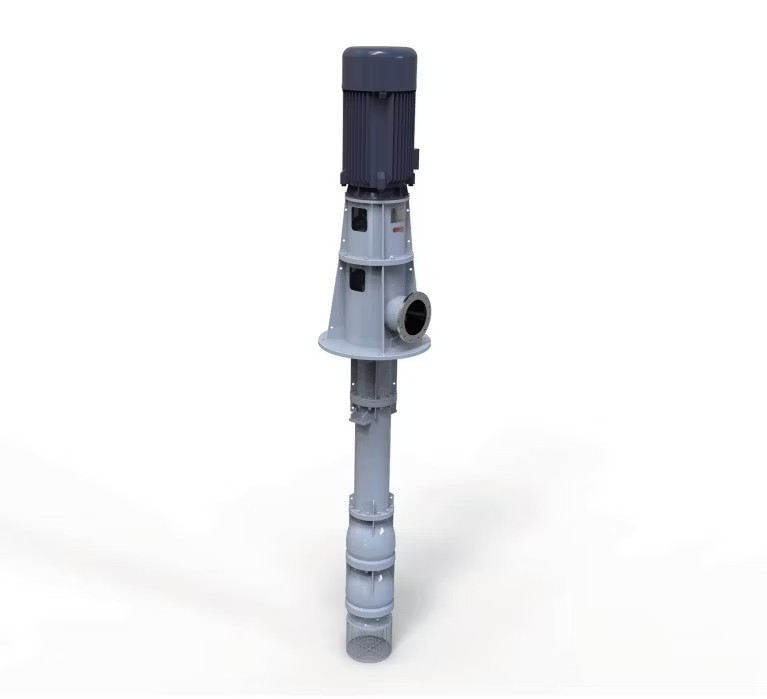

The impeller of this type of pump is below the pump inlet and the base, which effectively improves the cavitation performance of the pump group and meets the requirements of the use of low device cavitation conditions. Generally, the structure is horizontal in and out, and the installation is simple and convenient. The vertical structure motor falls above the pump body, and the unit occupies a small area, effectively improving the space utilization rate.
This series of pumps has high performance and has a variety of structural deformations to cope with different conditions of use.
In terms of hydraulic power, the first stage impeller and the secondary impeller are designed separately. The first stage impeller needs to have high cavitation performance, and the secondary impeller needs to have high efficiency. Radial or space guide vane extrusion chamber can be used, and there is no hydraulic radial force.
5 DECADES
Established in 1977, long history of pump making brings us rich experience, making us a professional pump manufaturer and ranking us as a famous pump factory in China.
500+ STAFFS
Well trained and professional engineers and workers guarantees the in time delivery and offers professional pump solutions to our clients.
100000m2 WORKSHOPS
Large and modernized workshops and facilities enables the efficient and strict QA&QC procedures and therefore assures the qualified products.
20+ BRANCHES
Established 20+ branches offices and subsidiaries throughout China, they offer closer and in time services to our clients. And our overseas customers are from different places of the world.
3000+ CLIENTS
Own more than 3000 clients both in China and overseas, which is an approval of our product quality and a praise of our service.
20+ PATENTS
Gained more than 20 patents, which is a strong proof of the ability of R&D and a backup of product quality.
